適用范圍：
●KCG系列儲液罐主要用于API 610PLAN52或PLAN53A密封輔助系統中，作為緩沖液或隔離液的儲存容器，為串聯密封或雙端面密封提供密封液，保證密封正常使用；
使用參數：
●使用溫度 -55~200℃
●使用壓力 6.0MPa(max)
●使用容積 10L、12L和20L三個系列（12L和20L滿足API 682要求）
安裝要求：
●立式安裝，液面位置高于設備回轉軸800~1000mm；
結構特點：
●符合JB/T6630-1993標準（亦可按ASME VIII標準設計）；
●采用MIG焊接工藝，X射線探傷，8.0 MPa水壓檢驗，質量可靠；
●石英晶體液位視鏡直觀顯示；
材料：
| 殼程材料 |
鉻鎳鋼/鉻鎳鉬鋼 |
|
管程材料 |
鉻鎳鋼/鉻鎳鉬鋼 |
|
密封圈材料 |
聚四氟乙烯/橡膠/石棉 |
可以提供其他材料，以適應特殊工況；
系統配置：
型號 |
罐體
KSG |
測量單元
KSI |
排空管線
KSL |
壓力源
管線
KSR |
溫度控
制管線
KST |
壓力控
制管線
KSP |
補液漏斗
KSD |
手動
補液泵
KSB |
壓力
開關
KSY |
液位
開關
KSW |
控制
閥門組
KSF |
|
KCG5210/A |
10L |
● |
● |
|
|
|
● |
|
|
|
● |
|
KCG5210/B |
10L |
● |
● |
|
|
|
● |
● |
|
|
● |
|
KCG5210/C |
10L |
● |
● |
|
|
|
● |
|
|
● |
● |
|
KCG5210/D |
10L |
● |
● |
|
|
|
● |
● |
|
● |
● |
|
KCG5210/E |
10L |
● |
● |
|
|
|
● |
|
● |
● |
● |
|
KCG5210/F |
10L |
● |
● |
|
|
|
● |
● |
● |
● |
● |
|
KCG5212/A |
12L |
|
● |
|
● |
● |
● |
|
|
|
● |
|
KCG5212/B |
12L |
|
● |
|
● |
● |
● |
● |
|
|
● |
|
KCG5212/C |
12L |
|
● |
|
● |
● |
● |
|
|
● |
● |
|
KCG5212/D |
12L |
|
● |
|
● |
● |
● |
● |
|
● |
● |
|
KCG5212/E |
12L |
|
● |
|
● |
● |
● |
|
● |
● |
● |
|
KCG5212/F |
12L |
|
● |
|
● |
● |
● |
● |
● |
● |
● |
|
KCG5220/A |
20L |
|
● |
|
● |
● |
● |
|
|
|
● |
|
KCG5220/B |
20L |
|
● |
|
● |
● |
● |
● |
|
|
● |
|
KCG5220/C |
20L |
|
● |
|
● |
● |
● |
|
|
● |
● |
|
KCG5220/D |
20L |
|
● |
|
● |
● |
● |
● |
|
● |
● |
|
KCG5220/E |
20L |
|
● |
|
● |
● |
● |
|
● |
● |
● |
|
KCG5220/F |
20L |
|
● |
|
● |
● |
● |
● |
● |
● |
● |
|
KCG5310/A |
10L |
● |
|
● |
|
|
● |
|
|
|
● |
|
KCG5310/B |
10L |
● |
|
● |
|
|
● |
● |
|
|
● |
|
KCG5310/C |
10L |
● |
|
● |
|
|
● |
|
|
● |
● |
|
KCG5310/D |
10L |
● |
|
● |
|
|
● |
● |
|
● |
● |
|
KCG5310/E |
10L |
● |
|
● |
|
|
● |
|
● |
● |
● |
|
KCG5310/F |
10L |
● |
|
● |
|
|
● |
● |
● |
● |
● |
|
KCG5312/A |
12L |
|
|
● |
● |
● |
● |
|
|
|
● |
|
KCG5312/B |
12L |
|
|
● |
● |
● |
● |
● |
|
|
● |
|
KCG5312/C |
12L |
|
|
● |
● |
● |
● |
|
|
● |
● |
|
KCG5312/D |
12L |
|
|
● |
● |
● |
● |
● |
|
● |
● |
|
KCG5312/E |
12L |
|
|
● |
● |
● |
● |
|
● |
● |
● |
|
KCG5312/F |
12L |
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
KCG5320/A |
20L |
|
|
● |
● |
● |
● |
|
|
|
● |
|
KCG5320/B |
20L |
|
|
● |
● |
● |
● |
● |
|
|
● |
|
KCG5320/C |
20L |
|
|
● |
● |
● |
● |
|
|
● |
● |
|
KCG5320/D |
20L |
|
|
● |
● |
● |
● |
● |
|
● |
● |
|
KCG5320/E |
20L |
|
|
● |
● |
● |
● |
|
● |
● |
● |
|
KCG5320/F |
20L |
|
|
● |
● |
● |
● |
● |
● |
● |
● |
●為標準配置；
可以根據用戶需要組合配置；

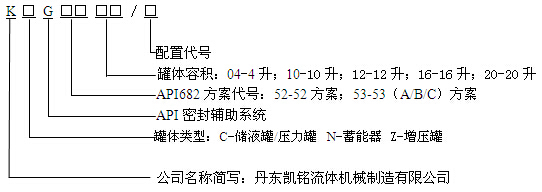

型號說明：
|
